Our Products

Specifications of Four Fold and Plating Machine for Agro Shed Net – Fabric Width 6.5Mtr 1. Maximum Fabric Width: 6.5 Meter2. Maximum Four Fold Width: 1.5Meter (+ 5MM)3. Maximum Roll Diameter at Input Side: 40”4. Minimum Plait Length: 0.995 Met5. Maximum Plait Length: 1.005 Met6. Normal Plait Length: 1.000 Met7. Maximum Table Vertical Movement: 12”8. Machine Variable Running Speed: - 35 MPM 9. Power Requirements: 6.0 H.P. / 415 Volts / 3 Phases / 50Hz. Large Roll Power Unwinder  Consists of M.S. side frames with M.S. rubber lagging covered rollers moving on ball bearings for easy unwinding of fabric rolls.  Adjustable MS Stand. Fabric rolls up to 40” roll diameters can be unrolled of this device.  In order to ensure just adequate release of fabric from rolls, the Unwinder is driven by an independent geared motor and drive system, which is synchronized with the rest of the machine. Drive is 3.0 H.P. A.C. system synchronized with the machine. Double Fold & Four Fold Attachments  Inlet of the fabric is in rolls form.  The fabric is taken up by a 3” roller, which then feed to the double folding arrangement.  The double folding arrangement using triangular table is mounted on a balanced frame, which permits very accurate doubling of the fabric with the help of Electromagnetic Cloth Guider assy.Electromagnetic Cloth Guider:  We provide Electromagnetic Cloth Guiders after the double folding triangle assembly for perfect alignment of the fabric after double folding. These guiders correct the misalignment in the fabric to ensure edges get placed uniformly one over the other before the Double Folding of the fabric. This arrangement includes two folding rollers underneath the triangular table, which guide the fabric underneath a driven 4” diameter roll with 1.0HP gear motor and AC Inverter which synchronize the fabric taking fabric from double folding and pass on to the four fold attachments triangle frame.  Between four fold and double fold attachment fabric oscillating unit will come with 1.0HP Gear Motor with AC Inverter to synchronies the fabric path from four fold attachments to plaitor attachments. Four fold attachments application will same with respect of double folding attachments, hence the fabric path will perpendicular in reference of both attachments. And Electromagnetic guiders will not place at four fold attachment. The Four folding arrangement using triangular table is mounted on a balanced frame, which permits very accurate doubling of the fabric. Plaitor & Table Assembly Fabric for Platting is fed through Four Folding attachment to a CI casting platform. Machine has closed iron walls that make the machine sturdy and vibration free during the selvedge to selvedge folding operation. To ensure high machine capacity and increased output, the swinging motion of the fabric is minimized due to the robust design of the machine. Folding blades are mounted on a carriage, which have a to and fro motion achieved by special steel roller chains.  Movement of folding blades is adjustable to suit the plaiting length. An adjustment of +/- 0.05 M is possible on the standard plaiting length of 1.0 meters.  Chains are covered to prevent cloth staining. To maximize the quantity of cloth that can be folded in one lot, the folding table can be lowered by 15”.  The table is attached to counter weights and thus it lowers automatically as the folded fabric gets added to it.  The table can also be pulled out by sliding it out of its assembly for easy removal of the folded fabric. The 1.0 HP motor driven by the plaitor assembly.
Four Folding and Plaiting Machine for
VIEW DETAILS
We have commenced our business by manufacturing, exporting and supplying Fabric Folding Machines like four folding fabric plating machine, double folding & lapping machine etc. Our offered machines are well-suited to be used in textile industry for providing double and four folds to different fabric like cotton, tulle, jacquard etc. Having an uninterrupted functionality, these machines are also used for fabric plating and lapping purposes. Using high grade components, these Fabric Folding Machines are manufactured by a team of adroit team members.Key points: Negligible maintenance Longer functional life Power efficient performance Simple installation
Fabric Folding Machines
VIEW DETAILS
Product DescriptionWith years of domain we are successfully designing and manufacturing Small Fabric Batching Machine for solving the problem of batching in textile industries. We use high grade raw material and component in the production of batching machine to ensure sturdy construction and durable finish. This conveniently resolves the batching problems and improves productivity of cloths. We welcome all the inquiries from customers and assure them of the best and technically superior Small Fabric Batching Machine at competitive prices.Features: Seamless finishing Superlative quality Impeccable finishing Cost-effective
Fabric Rolling Machines - Small Fabric
VIEW DETAILS
Product DescriptionWe are known among the most reliable manufacturers, suppliers and exporters of premium range of Mini Rolling Machines with Inspection. This machine is used for cold-forming operations only for external screws threads in blanks. In the machine, the blank is pressed by thread rolling dies that are associated with the thread rolling machine. Precise arrangements of parts in Mini Rolling Machine with Inspection enables it function with great efficiency. The machine performs seamlessly and is known for durability, performance reliability and long functional life.Features: Impeccable finishing Superlative quality Durable material Long lasting
Fabric Rolling Machines - Mini Rolling
VIEW DETAILS
Product DescriptionOur company has emerged as a prominent manufacturer, exporter and supplier of superior quality Power Unwinding Unit in Vadodara. This is manufactured in consonance with ISO standards and with the use of ISO quality valves and pumps. Stringent quality measures ensure optimum results while in operation. We do our best to offer modular concept that ascertains leak free and trouble free system. We welcome all the inquiries from our customers for world class Fabric Power Unwinding Unit offered at market leading prices.Features: Impeccable quality Superlative finishing Long lasting Cost-effective
Power Unwinding Unit
VIEW DETAILS

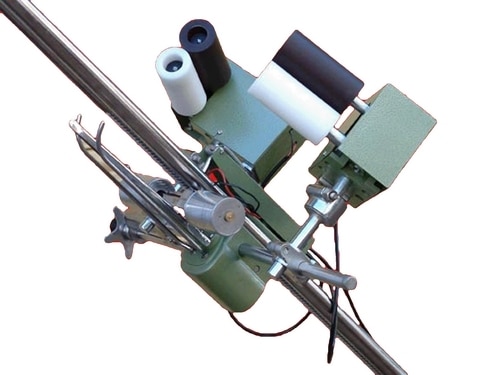

Product Code : 21Product DescriptionWe design and manufacture world class Pneumatic Cloth Guiders for use in chemical and wet conditions in the textile industries. We have worked hard to design and deliver the most efficient guider at market leading prices. It provides full insulation from electrical shocks and weighs only 2.5 kgs, which makes it a reliable choice. The easy functionality, smooth operation, light weight and durability make Pneumatic Cloth Guiders the perfect choice of the customers. We offer the range at highly competitive prices to achieve full customer satisfaction.Features: Precise dimensions Long lasting Efficient functions Cost-effective
Pneumatic Cloth Guiders
VIEW DETAILS
Product DescriptionWe design and manufacture high quality Tubular Knitted Fabric Inspection Machine. This machine is available in different models for variegated width of fabric with multiple input & output options. It comes with variable between 0-50 m/min. It has been designed for forward & returnable for movement for fabric rolling. The machine is also provided with inching option for alignment and movement of fabric manually. Tubular Knitted Fabric Inspection Machine ensures accurate length measurement with the help of analog length measurement system.Features: Equipped with branded geared motors and AC drives with special control panels for easy operation coupled with minimum maintenance issues Top and bottom illumination for convenient inspection of the fabric as per textile standards Durable and reliable functionality Available at market leading prices
Knitted Fabric Machines -Tubular Knitt
VIEW DETAILS

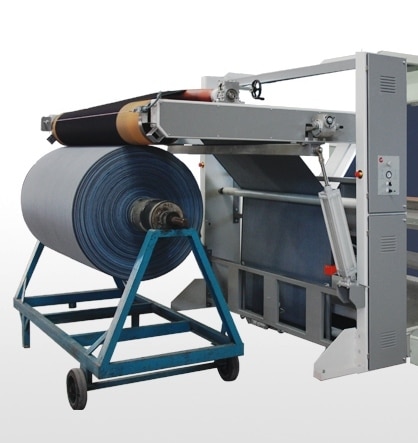

Product DescriptionWe are reckoned among the most reliable manufacturers, exporters and suppliers of high quality Large Fabric Batching Machine. This machine has been designed for providing solution for batching problems in textile industries. Our production specialists have used high grade sheet metal and components for ensuring durability, seamless performance, efficient functions and low maintenance requirements. Large Fabric Batching Machine resolves the cloth batching issue and improves productivity. Customers willing to purchase may contact us for their specific or urgent requirements.Features: Sturdy built Long lasting Durable and reliable Economical
Fabric Rolling Machines - Large Fabric
VIEW DETAILS
We are a distinguished manufacturer, exporter and supplier of supreme quality Mending Machine. This machine is used for mending of fabrics. This is an easy to install design and can be operated with complete convenience. We have gained immense appreciation from the clients for providing them machines as per their exact requirements. Mending Machines designed by us are known for excellent mending rate, outstanding design, efficiency and durability. The range is subject to strict quality testing by our in-house experts.Features: Outstanding mending rate Low power consumption Efficient Long lasting working life
Fabric Inspection Machines - Fabric Me
VIEW DETAILS

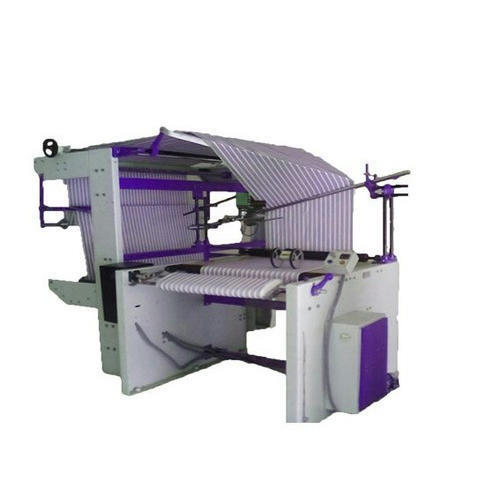

Product DescriptionOur company has earned remarkable reputation in the market for designing and manufacturing high technology Double Fold Opening & Rolling Machine. The machine is ideal for rolling all types of fabrics in double folds. This is especially designed for textile manufacturers across the world. The range is known for high tolerance power, optimum performance, easy maintenance and convenient operations. Double Fold Opening & Rolling Machine undergoes stringent testing on defined parameters to ascertain compliance with global quality standards.Features: Impeccable quality Superlative finishing Cost-effective Low maintenance requirements
Fabric Rolling Machines - Double Fold
VIEW DETAILS

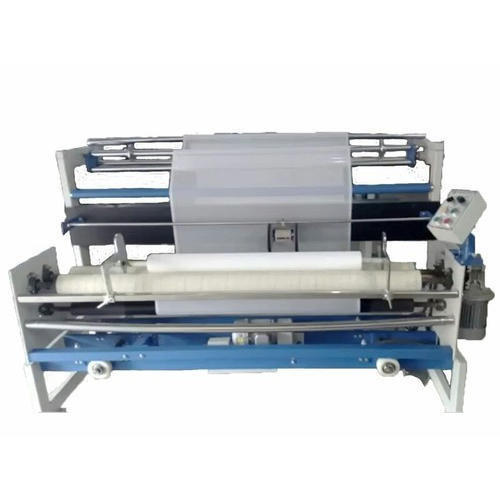

With rich industry and market knowledge, we are instrumental in offering quality approved Fabric Rolling Machines like large fabric batching machine, mini rolling machine with inspection etc. Known for easily adjustable attribute, the provided machines are used in textile industry for moving fabric forward and reverse direction during rolling, batching and inspection processes. These machines are manufactured as per industry standards under the prudent observation of skilled team members. Available in excellent working conditions, the offered Fabric Rolling Machines can be bought from us at market leading rates.Key points: User friendly interface Longer service life Vibration less performance High durability
Fabric Rolling Machines
VIEW DETAILS
Product DescriptionWe are known among the leading manufacturers, exporters and suppliers of superlative quality Single Pass Inspection Machine. We use the best grade parts and materials in the production process to ensure world class end products. Our company has carved a niche in Vadodara for designing and manufacturing highly efficient machines used in the textile industry. Single Pass Inspection Machine is an efficient machine designed for the inspection of thread stitching, and fabric finishing. This machine is known for efficient functions and durability.Features: Sturdy construction Low maintenance requirements Negligible breakdown Competitive prices
Knitted Fabric Machines - Single Pass
VIEW DETAILS

Filter using tags

Specifications of Four Fold and Plating Machine for Agro Shed Net – Fabric Width 6.5Mtr 1. Maximum Fabric Width: 6.5 Meter2. Maximum Four Fold Width: 1.5Meter (+ 5MM)3. Maximum Roll Diameter at Input Side: 40”4. Minimum Plait Length: 0.995 Met5. Maximum Plait Length: 1.005 Met6. Normal Plait Length: 1.000 Met7. Maximum Table Vertical Movement: 12”8. Machine Variable Running Speed: - 35 MPM 9. Power Requirements: 6.0 H.P. / 415 Volts / 3 Phases / 50Hz. Large Roll Power Unwinder  Consists of M.S. side frames with M.S. rubber lagging covered rollers moving on ball bearings for easy unwinding of fabric rolls.  Adjustable MS Stand. Fabric rolls up to 40” roll diameters can be unrolled of this device.  In order to ensure just adequate release of fabric from rolls, the Unwinder is driven by an independent geared motor and drive system, which is synchronized with the rest of the machine. Drive is 3.0 H.P. A.C. system synchronized with the machine. Double Fold & Four Fold Attachments  Inlet of the fabric is in rolls form.  The fabric is taken up by a 3” roller, which then feed to the double folding arrangement.  The double folding arrangement using triangular table is mounted on a balanced frame, which permits very accurate doubling of the fabric with the help of Electromagnetic Cloth Guider assy.Electromagnetic Cloth Guider:  We provide Electromagnetic Cloth Guiders after the double folding triangle assembly for perfect alignment of the fabric after double folding. These guiders correct the misalignment in the fabric to ensure edges get placed uniformly one over the other before the Double Folding of the fabric. This arrangement includes two folding rollers underneath the triangular table, which guide the fabric underneath a driven 4” diameter roll with 1.0HP gear motor and AC Inverter which synchronize the fabric taking fabric from double folding and pass on to the four fold attachments triangle frame.  Between four fold and double fold attachment fabric oscillating unit will come with 1.0HP Gear Motor with AC Inverter to synchronies the fabric path from four fold attachments to plaitor attachments. Four fold attachments application will same with respect of double folding attachments, hence the fabric path will perpendicular in reference of both attachments. And Electromagnetic guiders will not place at four fold attachment. The Four folding arrangement using triangular table is mounted on a balanced frame, which permits very accurate doubling of the fabric. Plaitor & Table Assembly Fabric for Platting is fed through Four Folding attachment to a CI casting platform. Machine has closed iron walls that make the machine sturdy and vibration free during the selvedge to selvedge folding operation. To ensure high machine capacity and increased output, the swinging motion of the fabric is minimized due to the robust design of the machine. Folding blades are mounted on a carriage, which have a to and fro motion achieved by special steel roller chains.  Movement of folding blades is adjustable to suit the plaiting length. An adjustment of +/- 0.05 M is possible on the standard plaiting length of 1.0 meters.  Chains are covered to prevent cloth staining. To maximize the quantity of cloth that can be folded in one lot, the folding table can be lowered by 15”.  The table is attached to counter weights and thus it lowers automatically as the folded fabric gets added to it.  The table can also be pulled out by sliding it out of its assembly for easy removal of the folded fabric. The 1.0 HP motor driven by the plaitor assembly.
View Details
Four Folding and Plaitin
We have commenced our business by manufacturing, exporting and supplying Fabric Folding Machines like four folding fabric plating machine, double folding & lapping machine etc. Our offered machines are well-suited to be used in textile industry for providing double and four folds to different fabric like cotton, tulle, jacquard etc. Having an uninterrupted functionality, these machines are also used for fabric plating and lapping purposes. Using high grade components, these Fabric Folding Machines are manufactured by a team of adroit team members.Key points: Negligible maintenance Longer functional life Power efficient performance Simple installation
View Details
Fabric Folding Machines
Product DescriptionWith years of domain we are successfully designing and manufacturing Small Fabric Batching Machine for solving the problem of batching in textile industries. We use high grade raw material and component in the production of batching machine to ensure sturdy construction and durable finish. This conveniently resolves the batching problems and improves productivity of cloths. We welcome all the inquiries from customers and assure them of the best and technically superior Small Fabric Batching Machine at competitive prices.Features: Seamless finishing Superlative quality Impeccable finishing Cost-effective
View Details
Fabric Rolling Machines
Product DescriptionWe are known among the most reliable manufacturers, suppliers and exporters of premium range of Mini Rolling Machines with Inspection. This machine is used for cold-forming operations only for external screws threads in blanks. In the machine, the blank is pressed by thread rolling dies that are associated with the thread rolling machine. Precise arrangements of parts in Mini Rolling Machine with Inspection enables it function with great efficiency. The machine performs seamlessly and is known for durability, performance reliability and long functional life.Features: Impeccable finishing Superlative quality Durable material Long lasting
View Details
Fabric Rolling Machines
Product DescriptionOur company has emerged as a prominent manufacturer, exporter and supplier of superior quality Power Unwinding Unit in Vadodara. This is manufactured in consonance with ISO standards and with the use of ISO quality valves and pumps. Stringent quality measures ensure optimum results while in operation. We do our best to offer modular concept that ascertains leak free and trouble free system. We welcome all the inquiries from our customers for world class Fabric Power Unwinding Unit offered at market leading prices.Features: Impeccable quality Superlative finishing Long lasting Cost-effective
View Details
Power Unwinding Unit
Product Code : 21Product DescriptionWe design and manufacture world class Pneumatic Cloth Guiders for use in chemical and wet conditions in the textile industries. We have worked hard to design and deliver the most efficient guider at market leading prices. It provides full insulation from electrical shocks and weighs only 2.5 kgs, which makes it a reliable choice. The easy functionality, smooth operation, light weight and durability make Pneumatic Cloth Guiders the perfect choice of the customers. We offer the range at highly competitive prices to achieve full customer satisfaction.Features: Precise dimensions Long lasting Efficient functions Cost-effective
View Details
Pneumatic Cloth Guiders
Product DescriptionWe design and manufacture high quality Tubular Knitted Fabric Inspection Machine. This machine is available in different models for variegated width of fabric with multiple input & output options. It comes with variable between 0-50 m/min. It has been designed for forward & returnable for movement for fabric rolling. The machine is also provided with inching option for alignment and movement of fabric manually. Tubular Knitted Fabric Inspection Machine ensures accurate length measurement with the help of analog length measurement system.Features: Equipped with branded geared motors and AC drives with special control panels for easy operation coupled with minimum maintenance issues Top and bottom illumination for convenient inspection of the fabric as per textile standards Durable and reliable functionality Available at market leading prices
View Details
Knitted Fabric Machines
Product DescriptionWe are reckoned among the most reliable manufacturers, exporters and suppliers of high quality Large Fabric Batching Machine. This machine has been designed for providing solution for batching problems in textile industries. Our production specialists have used high grade sheet metal and components for ensuring durability, seamless performance, efficient functions and low maintenance requirements. Large Fabric Batching Machine resolves the cloth batching issue and improves productivity. Customers willing to purchase may contact us for their specific or urgent requirements.Features: Sturdy built Long lasting Durable and reliable Economical
View Details
Fabric Rolling Machines
We are a distinguished manufacturer, exporter and supplier of supreme quality Mending Machine. This machine is used for mending of fabrics. This is an easy to install design and can be operated with complete convenience. We have gained immense appreciation from the clients for providing them machines as per their exact requirements. Mending Machines designed by us are known for excellent mending rate, outstanding design, efficiency and durability. The range is subject to strict quality testing by our in-house experts.Features: Outstanding mending rate Low power consumption Efficient Long lasting working life
View Details
Fabric Inspection Machin
Product DescriptionOur company has earned remarkable reputation in the market for designing and manufacturing high technology Double Fold Opening & Rolling Machine. The machine is ideal for rolling all types of fabrics in double folds. This is especially designed for textile manufacturers across the world. The range is known for high tolerance power, optimum performance, easy maintenance and convenient operations. Double Fold Opening & Rolling Machine undergoes stringent testing on defined parameters to ascertain compliance with global quality standards.Features: Impeccable quality Superlative finishing Cost-effective Low maintenance requirements
View Details
Fabric Rolling Machines
With rich industry and market knowledge, we are instrumental in offering quality approved Fabric Rolling Machines like large fabric batching machine, mini rolling machine with inspection etc. Known for easily adjustable attribute, the provided machines are used in textile industry for moving fabric forward and reverse direction during rolling, batching and inspection processes. These machines are manufactured as per industry standards under the prudent observation of skilled team members. Available in excellent working conditions, the offered Fabric Rolling Machines can be bought from us at market leading rates.Key points: User friendly interface Longer service life Vibration less performance High durability
View Details
Fabric Rolling Machines
Product DescriptionWe are known among the leading manufacturers, exporters and suppliers of superlative quality Single Pass Inspection Machine. We use the best grade parts and materials in the production process to ensure world class end products. Our company has carved a niche in Vadodara for designing and manufacturing highly efficient machines used in the textile industry. Single Pass Inspection Machine is an efficient machine designed for the inspection of thread stitching, and fabric finishing. This machine is known for efficient functions and durability.Features: Sturdy construction Low maintenance requirements Negligible breakdown Competitive prices
View Details
Knitted Fabric Machines
