Home Products Fabric Rolling Machines - Large Fabric Batching Machine
Product Description
Product Description

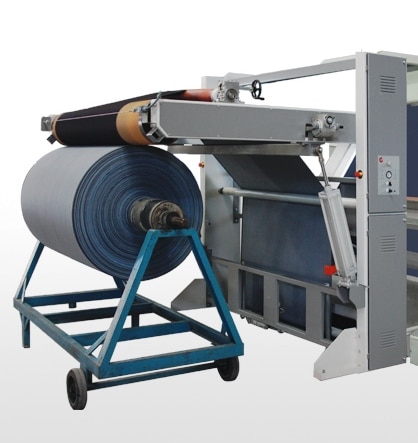

Fabric Rolling Machines - Large Fabric Batching Machine

Share with
Share this on :

Description

Product details

Product Description We are reckoned among the most reliable manufacturers, exporters and suppliers of high quality Large Fabric Batching Machine. This machine has been designed for providing solution for batching problems in textile industries. Our production specialists have used high grade sheet metal and components for ensuring durability, seamless performance, efficient functions and low maintenance requirements. Large Fabric Batching Machine resolves the cloth batching issue and improves productivity. Customers willing to purchase may contact us for their specific or urgent requirements. Features: Sturdy built Long lasting Durable and reliable Economical

Keywords

Other Products

Related Products

Specifications of Four Fold and Plating Machine for Agro Shed Net – Fabric Width 6.5Mtr 1. Maximum Fabric Width: 6.5 Meter 2. Maximum Four Fold Width: 1.5Meter (+ 5MM) 3. Maximum Roll Diameter at Input Side: 40” 4. Minimum Plait Length: 0.995 Met 5. Maximum Plait Length: 1.005 Met 6. Normal Plait Length: 1.000 Met 7. Maximum Table Vertical Movement: 12” 8. Machine Variable Running Speed: - 35 MPM 9. Power Requirements: 6.0 H.P. / 415 Volts / 3 Phases / 50Hz. Large Roll Power Unwinder  Consists of M.S. side frames with M.S. rubber lagging covered rollers moving on ball bearings for easy unwinding of fabric rolls.  Adjustable MS Stand.  Fabric rolls up to 40” roll diameters can be unrolled of this device.  In order to ensure just adequate release of fabric from rolls, the Unwinder is driven by an independent geared motor and drive system, which is synchronized with the rest of the machine.  Drive is 3.0 H.P. A.C. system synchronized with the machine. Double Fold & Four Fold Attachments  Inlet of the fabric is in rolls form.  The fabric is taken up by a 3” roller, which then feed to the double folding arrangement.  The double folding arrangement using triangular table is mounted on a balanced frame, which permits very accurate doubling of the fabric with the help of Electromagnetic Cloth Guider assy. Electromagnetic Cloth Guider:  We provide Electromagnetic Cloth Guiders after the double folding triangle assembly for perfect alignment of the fabric after double folding. These guiders correct the misalignment in the fabric to ensure edges get placed uniformly one over the other before the Double Folding of the fabric.  This arrangement includes two folding rollers underneath the triangular table, which guide the fabric underneath a driven 4” diameter roll with 1.0HP gear motor and AC Inverter which synchronize the fabric taking fabric from double folding and pass on to the four fold attachments triangle frame.  Between four fold and double fold attachment fabric oscillating unit will come with 1.0HP Gear Motor with AC Inverter to synchronies the fabric path from four fold attachments to plaitor attachments.  Four fold attachments application will same with respect of double folding attachments, hence the fabric path will perpendicular in reference of both attachments. And Electromagnetic guiders will not place at four fold attachment.  The Four folding arrangement using triangular table is mounted on a balanced frame, which permits very accurate doubling of the fabric. Plaitor & Table Assembly  Fabric for Platting is fed through Four Folding attachment to a CI casting platform.  Machine has closed iron walls that make the machine sturdy and vibration free during the selvedge to selvedge folding operation.  To ensure high machine capacity and increased output, the swinging motion of the fabric is minimized due to the robust design of the machine.  Folding blades are mounted on a carriage, which have a to and fro motion achieved by special steel roller chains.  Movement of folding blades is adjustable to suit the plaiting length. An adjustment of +/- 0.05 M is possible on the standard plaiting length of 1.0 meters.  Chains are covered to prevent cloth staining.  To maximize the quantity of cloth that can be folded in one lot, the folding table can be lowered by 15”.  The table is attached to counter weights and thus it lowers automatically as the folded fabric gets added to it.  The table can also be pulled out by sliding it out of its assembly for easy removal of the folded fabric.  The 1.0 HP motor driven by the plaitor assembly.
View Details
Four Folding and Plaiting Machine for Shed Net and Green Net
We have commenced our business by manufacturing, exporting and supplying Fabric Folding Machines like four folding fabric plating machine, double folding & lapping machine etc. Our offered machines are well-suited to be used in textile industry for providing double and four folds to different fabric like cotton, tulle, jacquard etc. Having an uninterrupted functionality, these machines are also used for fabric plating and lapping purposes. Using high grade components, these Fabric Folding Machines are manufactured by a team of adroit team members. Key points: Negligible maintenance Longer functional life Power efficient performance Simple installation
View Details
Fabric Folding Machines
Product Description With years of domain we are successfully designing and manufacturing Small Fabric Batching Machine for solving the problem of batching in textile industries. We use high grade raw material and component in the production of batching machine to ensure sturdy construction and durable finish. This conveniently resolves the batching problems and improves productivity of cloths. We welcome all the inquiries from customers and assure them of the best and technically superior Small Fabric Batching Machine at competitive prices. Features: Seamless finishing Superlative quality Impeccable finishing Cost-effective
View Details
Fabric Rolling Machines - Small Fabric Batching Machine
